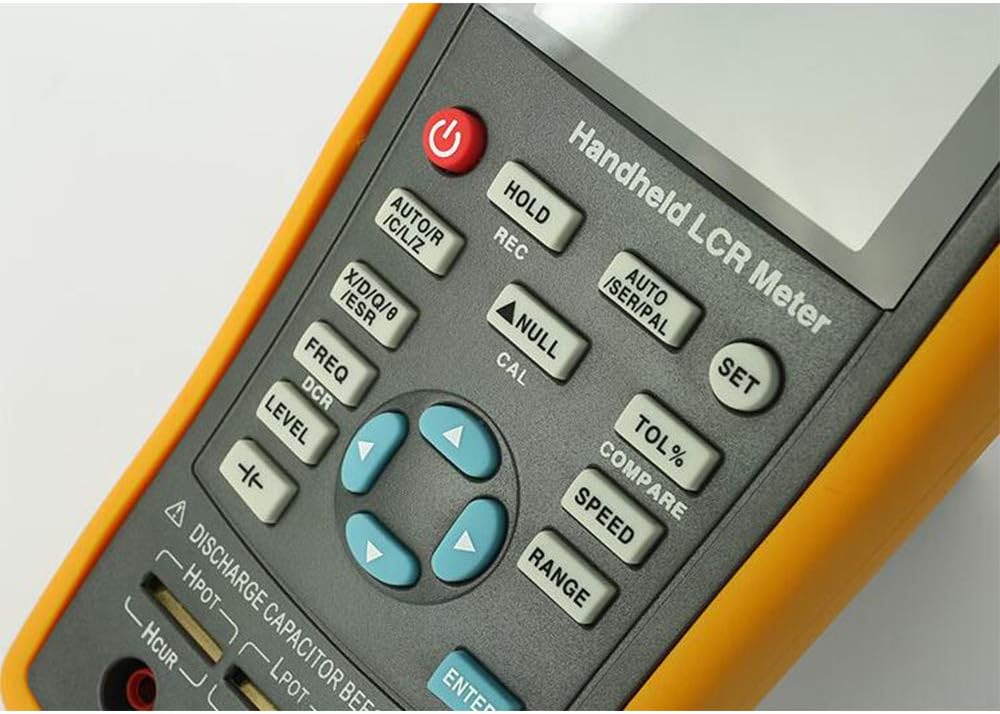

High Precision Handheld LCR Meter,Capacitor Inductance Resistance Tester Resistance Inductance Capacitance Measuring High Accuracy Test Tool (ET430)

High Precision Handheld LCR Meter ,Capacitor Inductance Resistance Tester Resistance Inductance Capacitance Measuring High Accuracy Test Tool Feature: Measurement frequency up to 100kHz, 1Hz step continuously adjustable Support DC resistance, electrolytic capacitance measurement Internal bias voltage output (10mV-500mV) Component measurement automatic identification Support screening and deviation measurement 2.8 inch TFT display, 4-1/2 display Basic measurement accuracy is 0.2%, measurement speed can be adjusted Large capacity lithium battery power supply, USB communication interface, support SCPI protocol Manual and automatic range With open circuit short circuit correction Parameter: Model: ET430 Test frequency: 100Hz, 120Hz, 1KHz, 10KHz,40kHz,100KHz Basic accuracy: 0.30% Display: 2.8 inch TFT Display digits: main parameter 5 bits, sub-parameter 5bits Measurement parameters: main parameter L/C/R/Z, sub-parameter: X/D/Q/ESR/θ Electrolytic capacitor mode: Yes DCR mode: No Measuring range: L: 0.000μH~2000H; C: 0.000pF~20.000mF; R: 0.0001Ω~200.00MΩ Measurement display speed: 1 time / sec (slow speed), 2 times / sec (medium speed), 4 times / sec (fast) Internal offset: No Test level: 0.6Vrms Calibration function: open circuit calibration, short circuit calibration Screening function: The screening limit range can be set from 1% to 50%, where the fixed point is 1%, 5%, 10%, 20% Deviation measurement: used to compare the percentage deviation between the component and the set nominal value and display Package Including: 1 x Handheld LCR Meter
